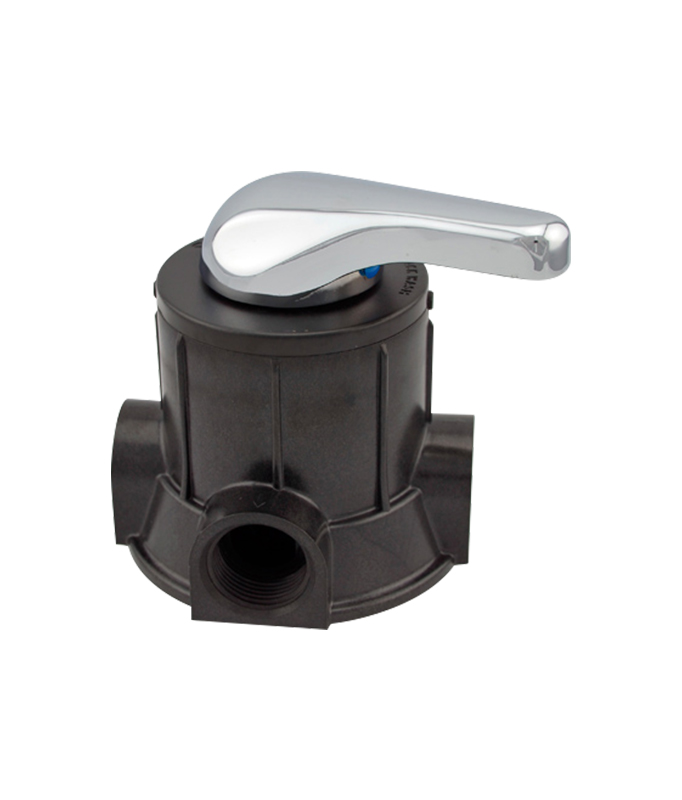

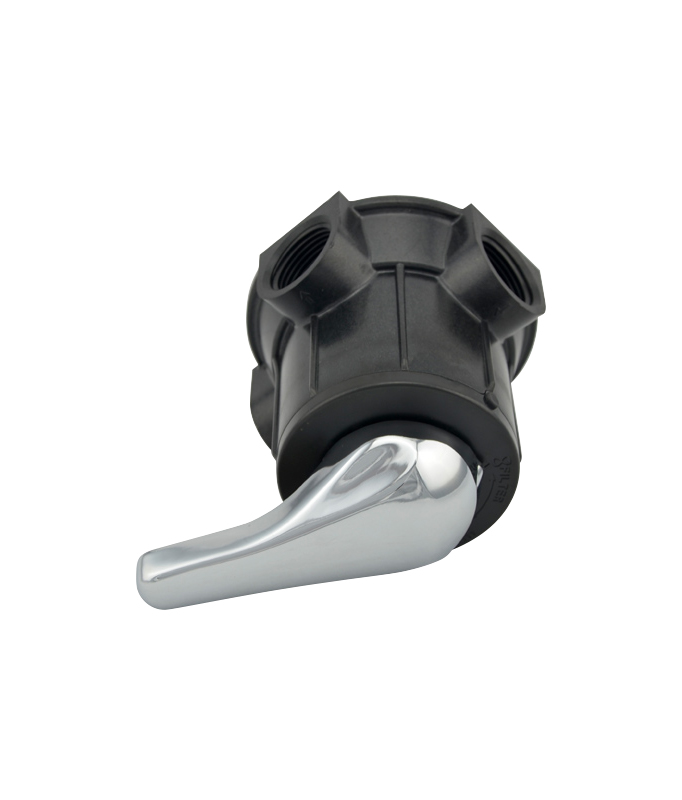

RUNXIN F56F Manual Filter Valve
Technical Parameters
| Model | 51106(F56F) |
| Inlet/outlet | 1″ F |
| Drain | 1″ F |
| Base | 2.5″-8NPSM |
| Riser pipe | 1″ D-GB |
| Water treatment capacity | 6 m³/h |
| Tank diameter range | 6″`~14″ |
| Water pressure | 0.15MPa～0.6MPa |
| Water temperature | 5℃～50℃ |
| Water turbidity | ＜20FTU |
| Environment temperature | 5℃～50℃ |
| Relative Humidity | ≤95％(25℃) |
Product Characteristics：
- It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
- No water passes the valve in rinse in single tank type.
- Reasonable design of the flow passage: Service→ Fast Rinse→ Backwash → Fast Rinse → Backwash →Service.
- It can be changed to be a side-mounted valve with side-mounted connector.
- It can operate under pressure, without leakage.
Range of Application：
- Residential filtration system
- Swimming pool filtration equipment
- Active carbon or sand filter in RO pretreatment filtration system
System Configuration and Flow Rate Parameters
| Tank size | Activated Carbon Filter |
Sand Filter |
||||||
| Diameter | Height | Tank Volume | Filter Material
Volume |
Filter Flow Rate | Backwash
Flow Rate |
Filter
Flow Rate |
Backwash Flow Rate |
|
|
in |
mm | in | L | L | m3/h | m3/h | m3/h |
m3/h |
|
6 |
152 | 35 | 14.4 | 10 | 0.2 | 0.7 | 0.4 |
1.0 |
|
7 |
178 | 44 | 25.4 | 17 | 0.3 | 0.9 | 0.6 |
1.3 |
|
8 |
203 | 44 | 32.9 | 22 | 0.4 | 1.1 | 0.8 |
1.7 |
|
9 |
229 | 48 | 44.7 | 30 | 0.5 | 1.5 | 1.0 |
2.2 |
| 10 | 254 | 54 | 65.3 | 41 | 0.6 | 1.7 | 1.2 |
2.6 |
|
12 |
305 | 65 | 89.2 | 59 | 0.8 | 2.5 | 1.7 |
3.8 |
|
13 |
330 | 54 | 113.8 | 69 | 1.0 | 3.0 | 2.1 |
4.6 |
|
14 |
356 | 65 | 150.3 | 103 | 1.2 | 3.4 | 2.4 |
5.2 |
|
16 |
406 | 65 | 189.6 | 120 | 1.5 | 4.5 | 3.1 |
6.8 |
|
18 |
457 | 65 | 253 | 169 | 2.0 | 5.9 | 4.1 |
8.8 |
|
20 |
508 | 72 | 310.5 | 207 | 2.4 | 7.0 | 4.9 |
10.6 |
|
22 |
550 | 72 | 385 | 255 | 2.8 | 8.5 | 5.9 |
12.8 |
| 24 | 610 | 88 | 480 | 320 | 3.4 | 10.0 | 7.0 |
15.2 |
Note: The listed activated carbon filter flow rate is the outcome of calculation based on a flow velocity of 12m/h; The backwash rate is based on a backwash intensity of 10L/(㎡*s). The above sand filter flow rate corresponds to a flow velocity of 25m/h; The backwash rate is related to a backwash intensity of 15L/(㎡*s)
