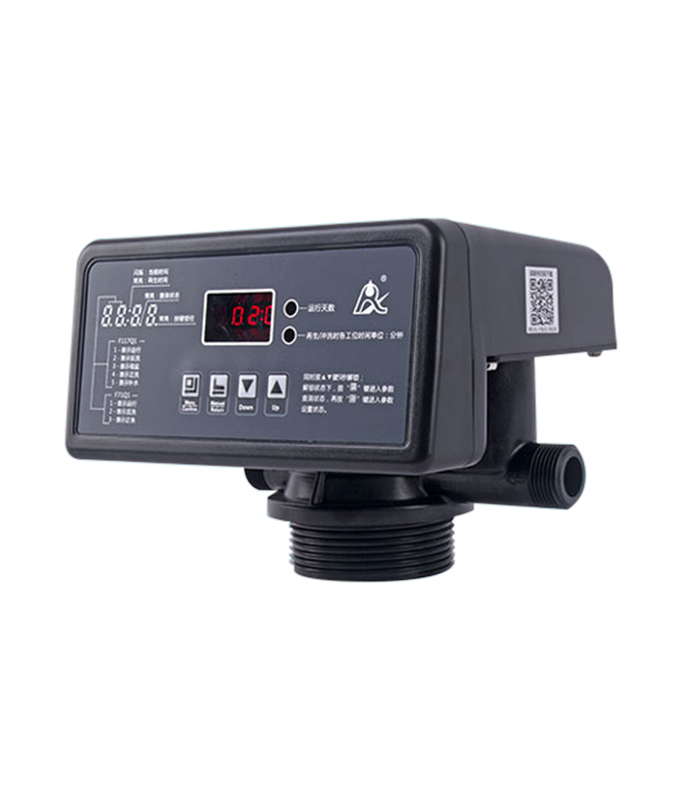

RUNXIN F71Q Automatic Filter Valve

RUNXIN F71Q Automatic Filter Valve 3/4″ 2.5″/ 2(m3/H)

Technical Parameters：

• Water Pressure————————————————0.15—0.6MPa
• Water Temperature——————————————-5℃-50℃
• Transformer Output——————————————-DC12V、1.5A
• Water Turbidity————————————————＜20FTU
• Inlet/Outlet——————————————————-3/4″F
• Drain————————————————————–3/4″F
• Base—————————————————————2.5″-8NPSM
• Riser Pipe——————————————————–1.05 ″OD
• Max Flow Rate—————————————————2 m3/h
• Suitable Tank Size (in)—————————————–6″～10″

Product Characteristics：

• It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
• No water passes the valve in rinse in single tank type.
• LED dynamic screen display LED. The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in rinse cycle.
• Having long outage indicator
• It could set up rinsing frequency
• There are two kinds of time clock types: by hours or by days
• Buttons are locked when no operation within 1 minute
• Having an interlock function
• With signal output connector
• With remote handling input connector
• With pressure relief connector
• All parameters can be modified according to the need

Range of Application：

• Residential filtration system
• Swimming pool filtration equipment
• Active carbon or sand filter in RO pretreatment filtration system
