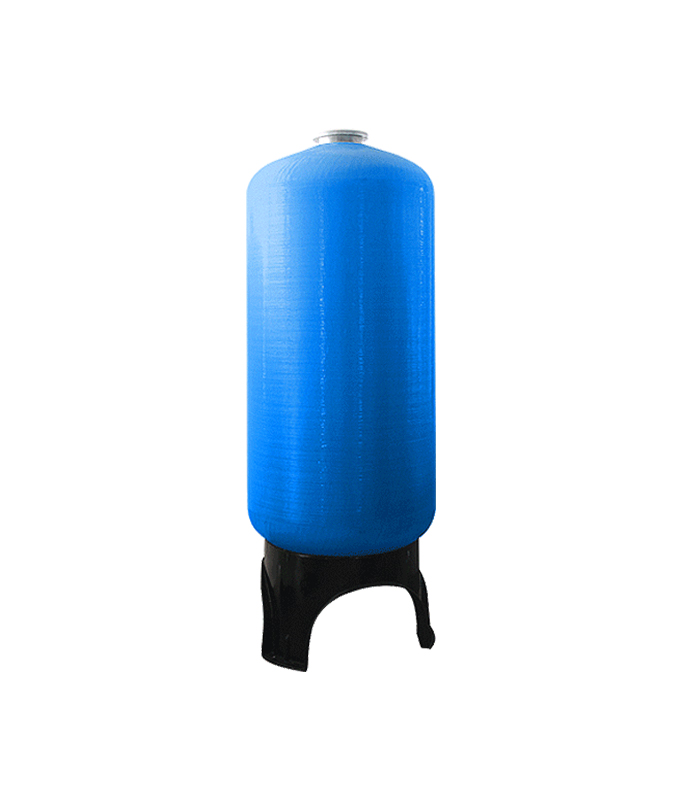

Ametec FRP Vessel 2069

Composite Pressure Vessels offer reinforced fiberglass construction for outstanding performance and durability. Available in capacities up to 1,600 gallons, composite vessels are available with a variety of different configurations.

FEATURES AND BENEFITS

• For commercial and industrial water treatment and storage
• 100% composite fiberglass construction
• Outstanding performance and durability in harsh chemical environments
• Absolutely will not – and cannot – rust
• Capacities up to 1,600 gallons
• Commercial softening and filtration

Material of Construction

• Polyethylene inner shell

Operating Parameters

• Maximum operating pressure – 150 psi
• Maximum operating temperature – 120°F (threaded); 150°F (flanged)

•
  Play The Video


01. Specifications:

• Operating Pressure: 150psi (10.5Bar)
• Operating Temp.: 34-122ËšF (1-50ËšC)
• Max Vacuum: 140mm Hg
• Mini exposed Temp: -30ËšC (-22ËšF)

02. Test

• 250000 times of cycle test from 0 – 150psi withstanding pressure. (NSF’s requirements is 100000 times)
• Burst test to four times of its operating pressure. (600psi)

03. Color

• Basically we provide the pressure vessels in natural standard blue.
